Power Seat Switch

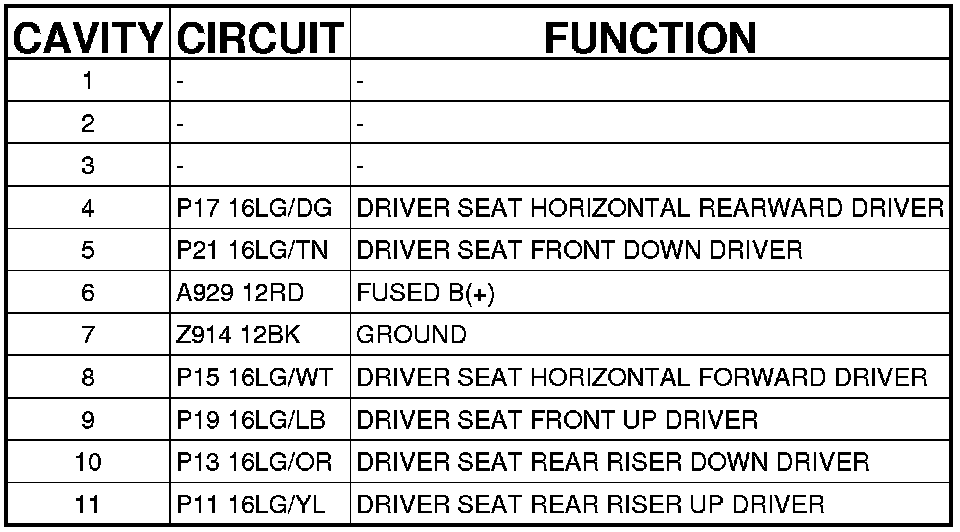

Connector (JS27) - (DRIVER SEAT) 11 WAY

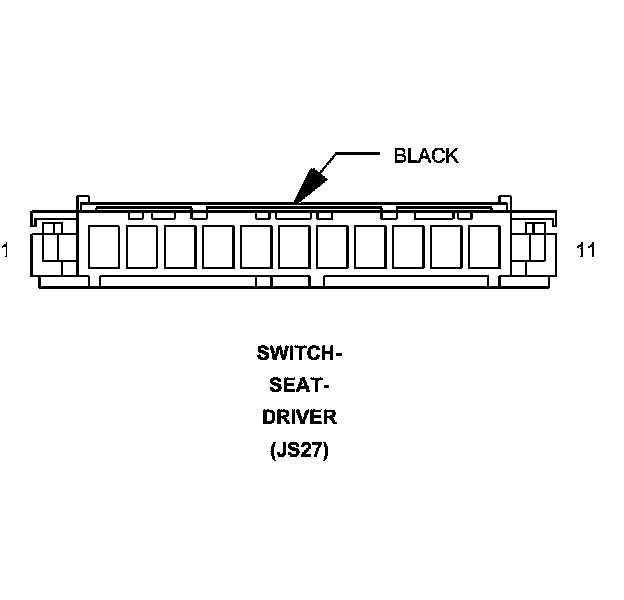

SWITCH-SEAT-DRIVER (JS27) - (DRIVER SEAT) 11 WAY
