Steering Control Module C8 (Steering Wheel) 6 Way

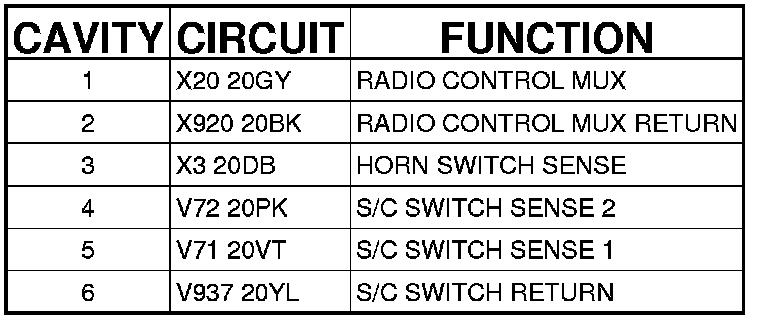

Connector C8 - (STEERING WHEEL) 6 WAY

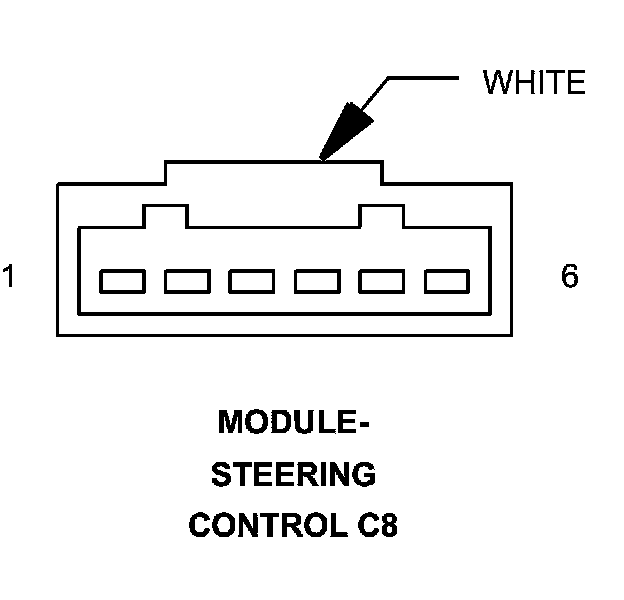

MODULE-STEERING CONTROL - (STEERING WHEEL) 6 WAY
