Trunk / Liftgate Switch

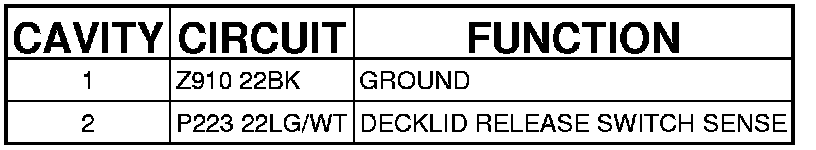

Connector - (INSTRUMENT PANEL) 2 WAY

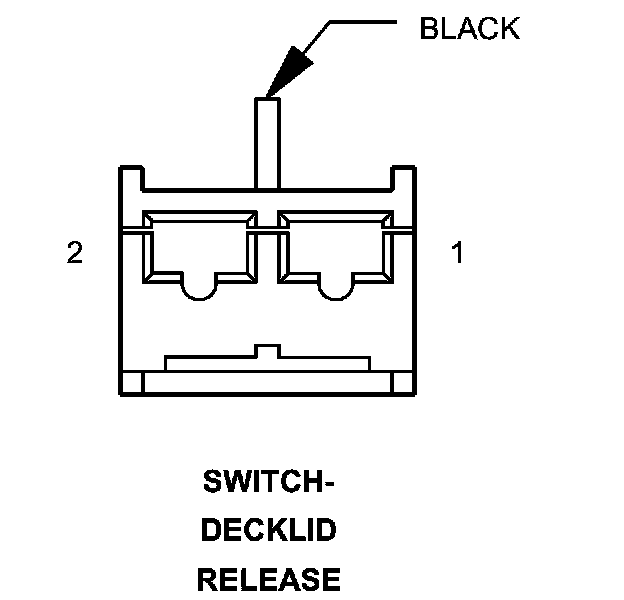

SWITCH-DECKLID RELEASE - (INSTRUMENT PANEL) 2 WAY
