Variable Induction Control Valve

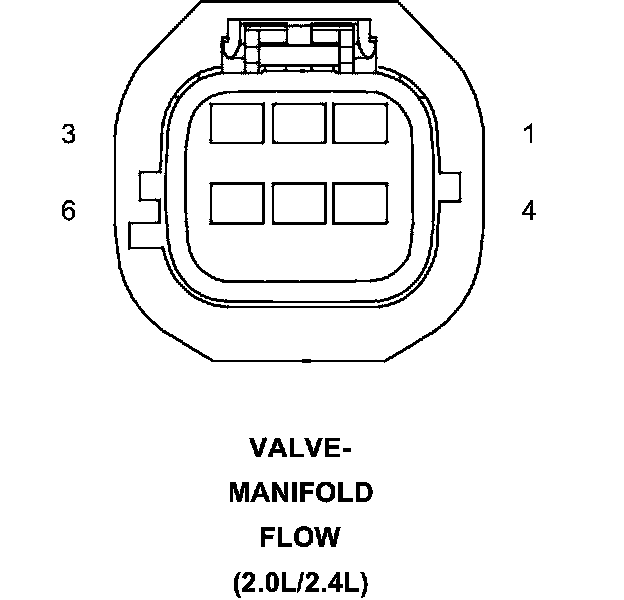

Connector (2.0L/2.4L) - (ENGINE) 6 WAY

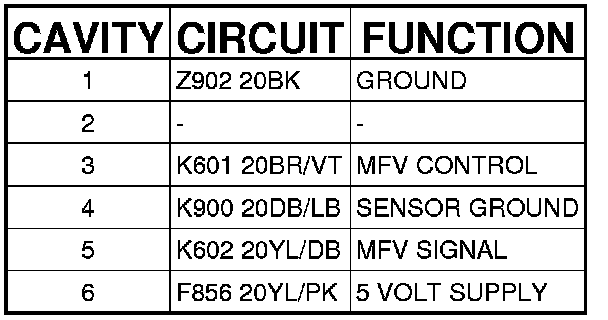

VALVE-MANIFOLD FLOW (2.0L/2.4L) - (ENGINE) 6 WAY
