Wiper Motor

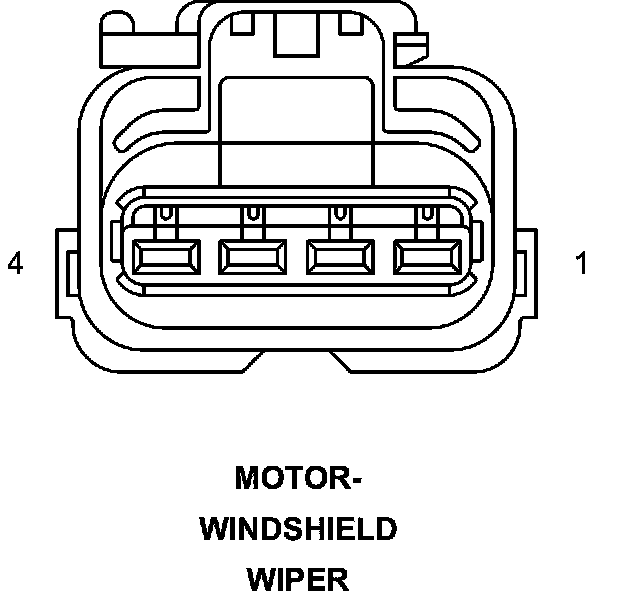

Connector - (HEADLAMP AND DASH) 4 WAY

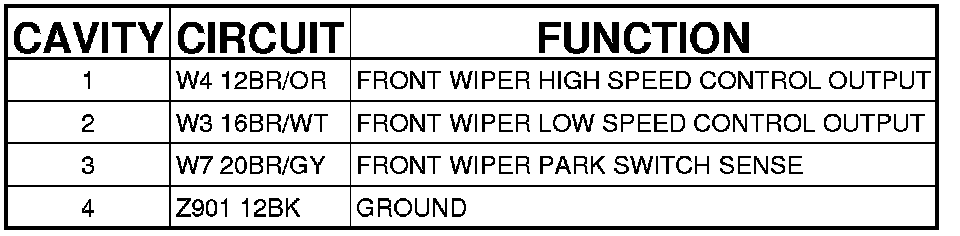

MOTOR-WINDSHIELD WIPER - (HEADLAMP AND DASH) 4 WAY
