Engine Coolant Temperature Sensor 2 (Engine) 2 Way

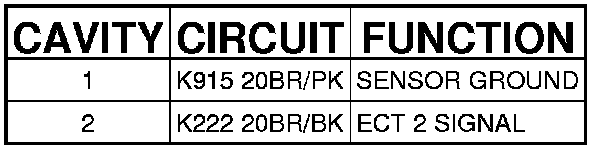

Connector (2.0L/2.4L) - (ENGINE) 2 WAY

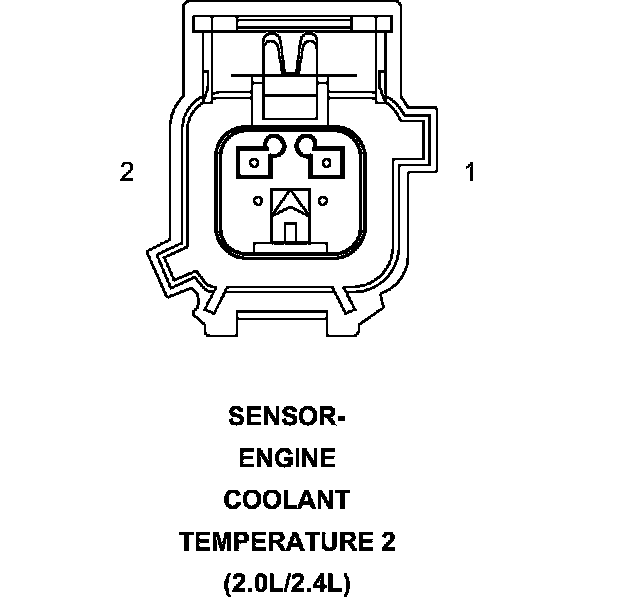

SENSOR-ENGINE COOLANT TEMPERATURE 2 (2.0L/2.4L) - (ENGINE) 2 WAY
