Crankshaft Position Sensor - Installation

2.0, 2.4L

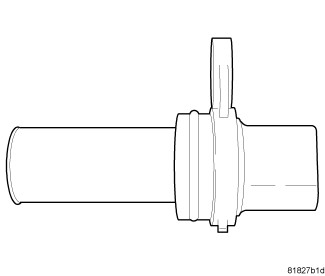

1. Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.
2. Use a twisting motion when installing the sensor.





3. Install and tighten the crankshaft position sensor bolt and tighten to 9 Nm (79.5 in. lbs.).

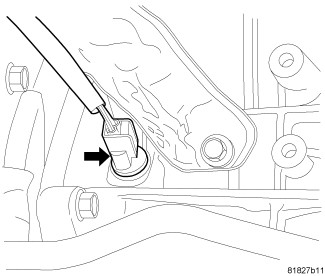

4. Connect and lock the electrical connector to the crankshaft position sensor.

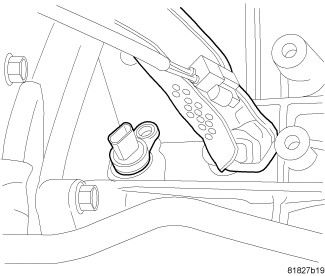

5. Install heat shield and retaining bolt.





6. Lower vehicle.
7. Connect the negative battery cable.
