Fuel Pump Module - Description

DESCRIPTION




MODULES AWD PLASTIC TANK

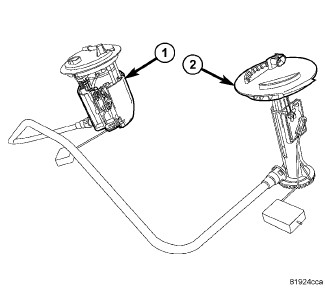

The main fuel pump module (1) contains the fuel pump, fuel reservoir, level sensor, fuel pressure regulator, and fuel filter. The secondary fuel level sensor (2) contains only a fuel level sensor.




MODULES AWD STEEL TANK JS
The main fuel level sensor located on the fuel pump module (1) is not serviceable for both front wheel drive (FWD) and all wheel drive (AWD) vehicles. Only the main fuel level sensor for the Flexible Fuel Vehicle (FFV) and the secondary fuel level sensor for the AWD vehicle are serviceable.
