Fuel Level Sensor: Diagrams






Connector (FFV) - (BODY) 4 WAY

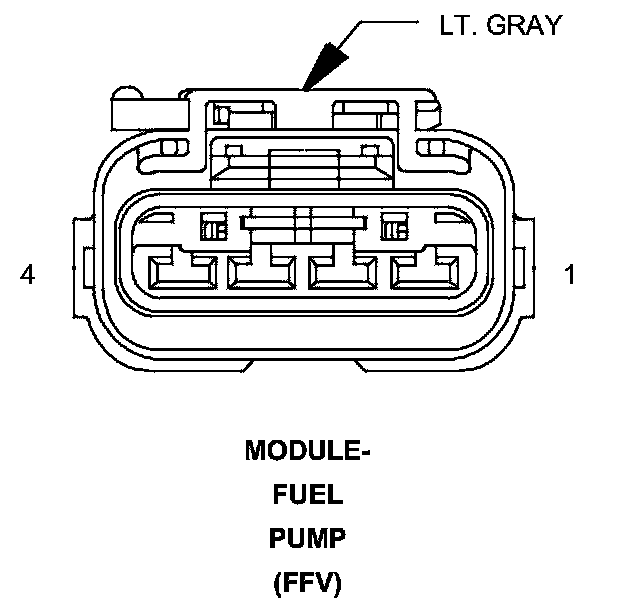

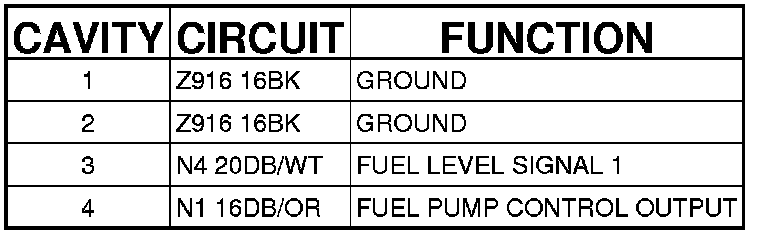

MODULE-FUEL PUMP (FFV) - (BODY) 4 WAY
