Transmission Position Sensor/Switch: Diagrams

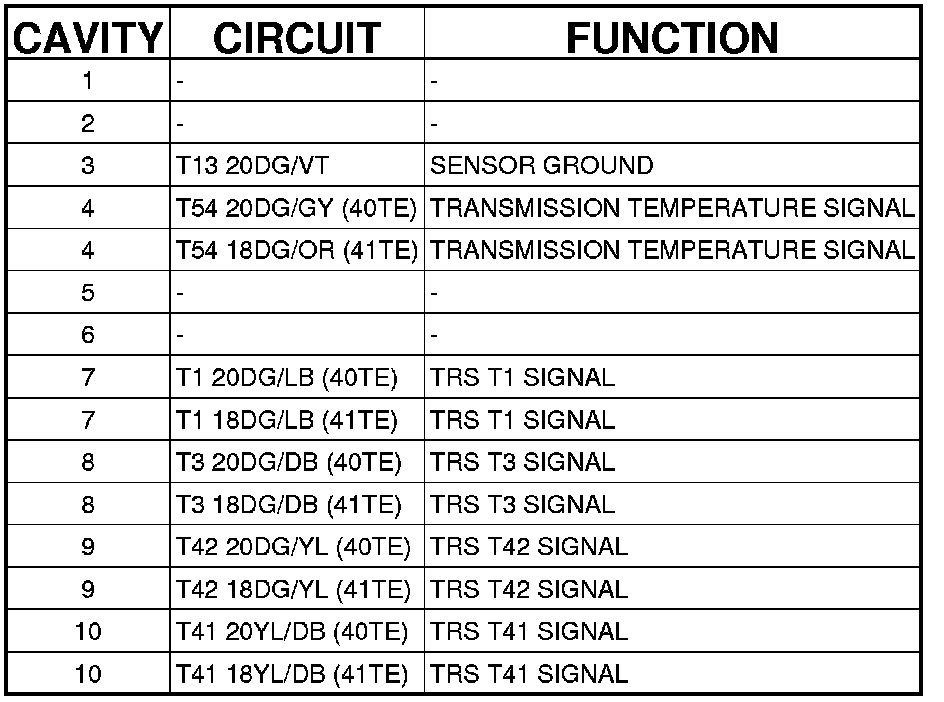

Connector (40/41TE) - (TRANSMISSION/ENGINE) 10 WAY

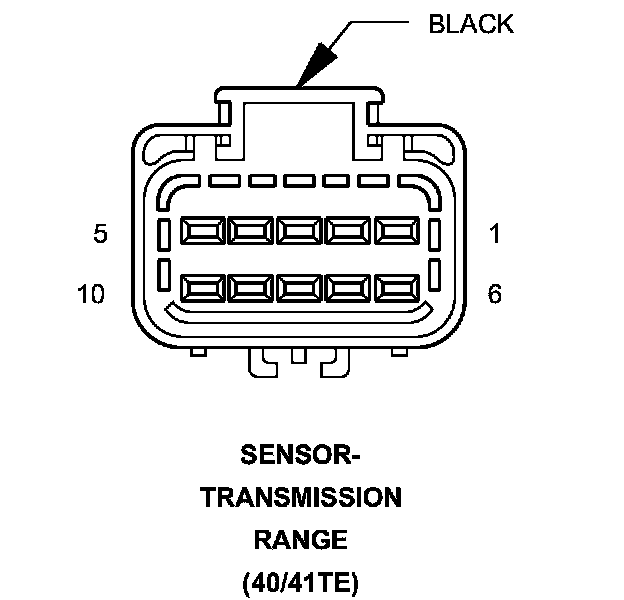

SENSOR-TRANSMISSION RANGE (40/41TE) - (TRANSMISSION/ENGINE) 10 WAY
