Transmission Range Sensor - Removal

REMOVAL










1. Remove valve body assembly from transaxle. Valve Body - Removal.

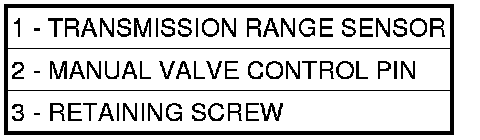

2. Remove Transmission Range Sensor retaining screw (3) and remove sensor (1) from valve body.
3. Remove TRS (1) from manual shaft.
