Front Fender - Installation

INSTALLATION

1. Place fender in position on vehicle.

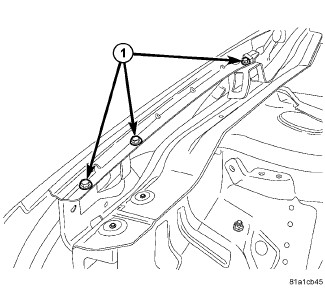

2. From inside engine compartment, start the center upper rail bolt. Install all the fasteners (1) attaching fender to upper rail and tighten.

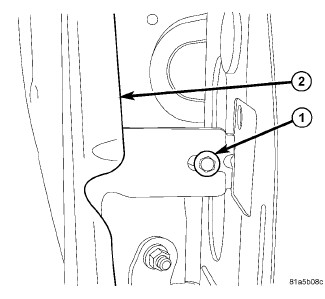

3. Install fender to lower cowl panel bolt.
4. Install fender to rocker panel bolt.
5. Place fascia into position.

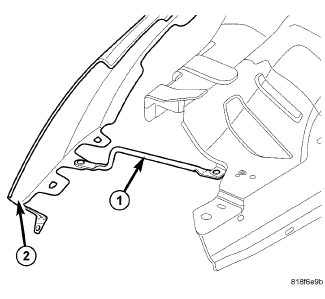

6. Install fender to fascia brace (1) fastener.
7. Install inner splash shields, Splash Shield - Installation.
8. Install headlamp assembly, Front Lamp Unit - Installation.
9. Check fender for flush and gap.
10. Continue to install fascia, Front Bumper Fascia - Installation.
