Powertrain Control Module C3 (Headlamp And Dash) 38 Way

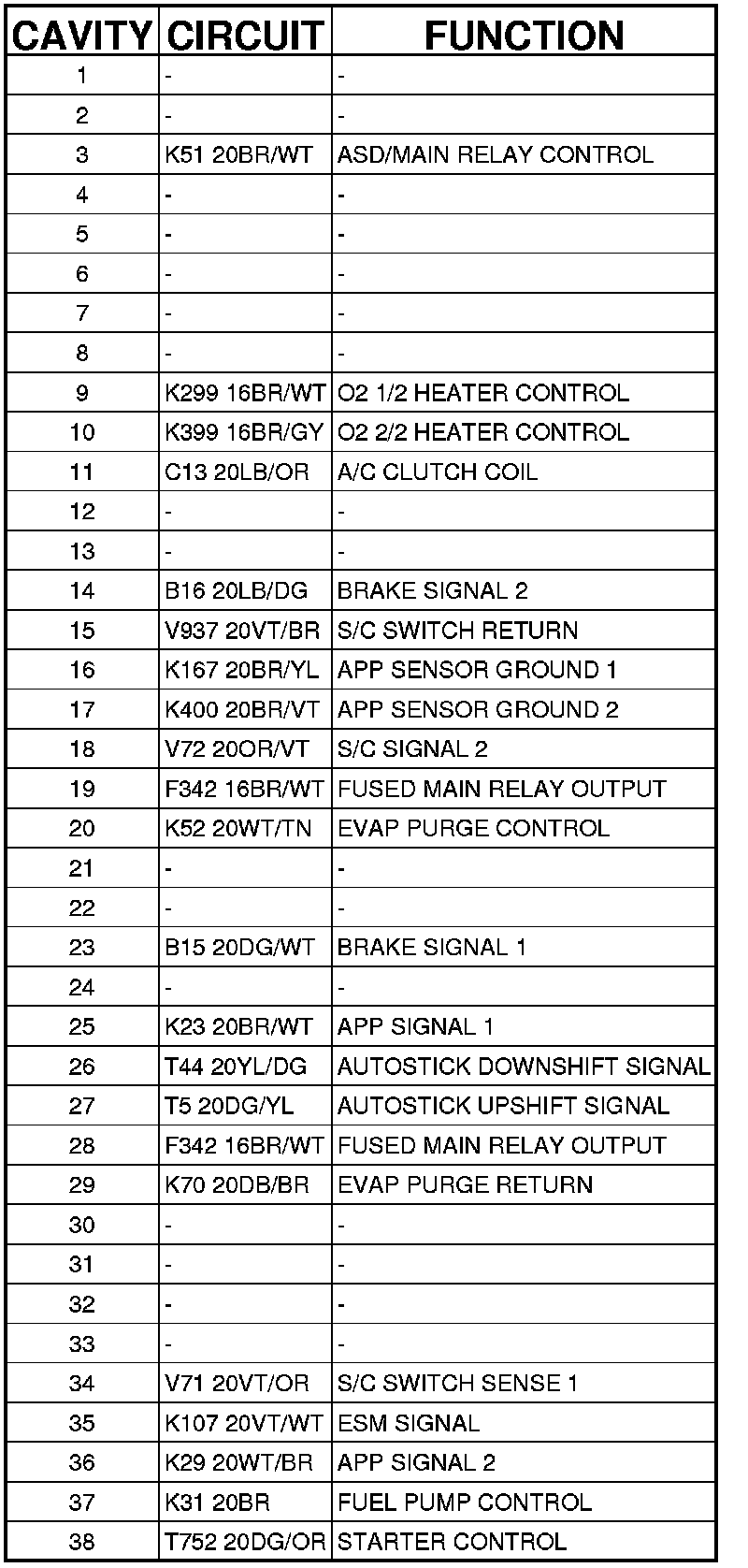

Connector C3 (NGC) - (HEADLAMP AND DASH) 38 WAY




MODULE-POWERTRAIN CONTROL (NGC) - (HEADLAMP AND DASH) 38 WAY
