Ignition Capacitor 2nd

2.7L 2nd

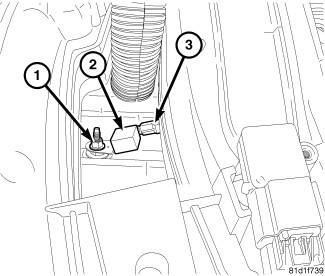

1. Install ignition coil capacitor (2) and bolt (1).
2. Tighten bolt to 28 Nm (20.5 ft. lbs.).
3. Connect electrical connector (3).
4. Connect negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
