41TE Automatic Transaxle






SPECIFICATIONS

GENERAL SPECIFICATIONS






GEAR RATIOS






BEARING SETTINGS (END PLAY AND TURNING TORQUE)






CLUTCH CLEARANCES






GEAR TRAIN MEASUREMENTS






OIL PUMP CLEARANCES






INPUT SHAFT

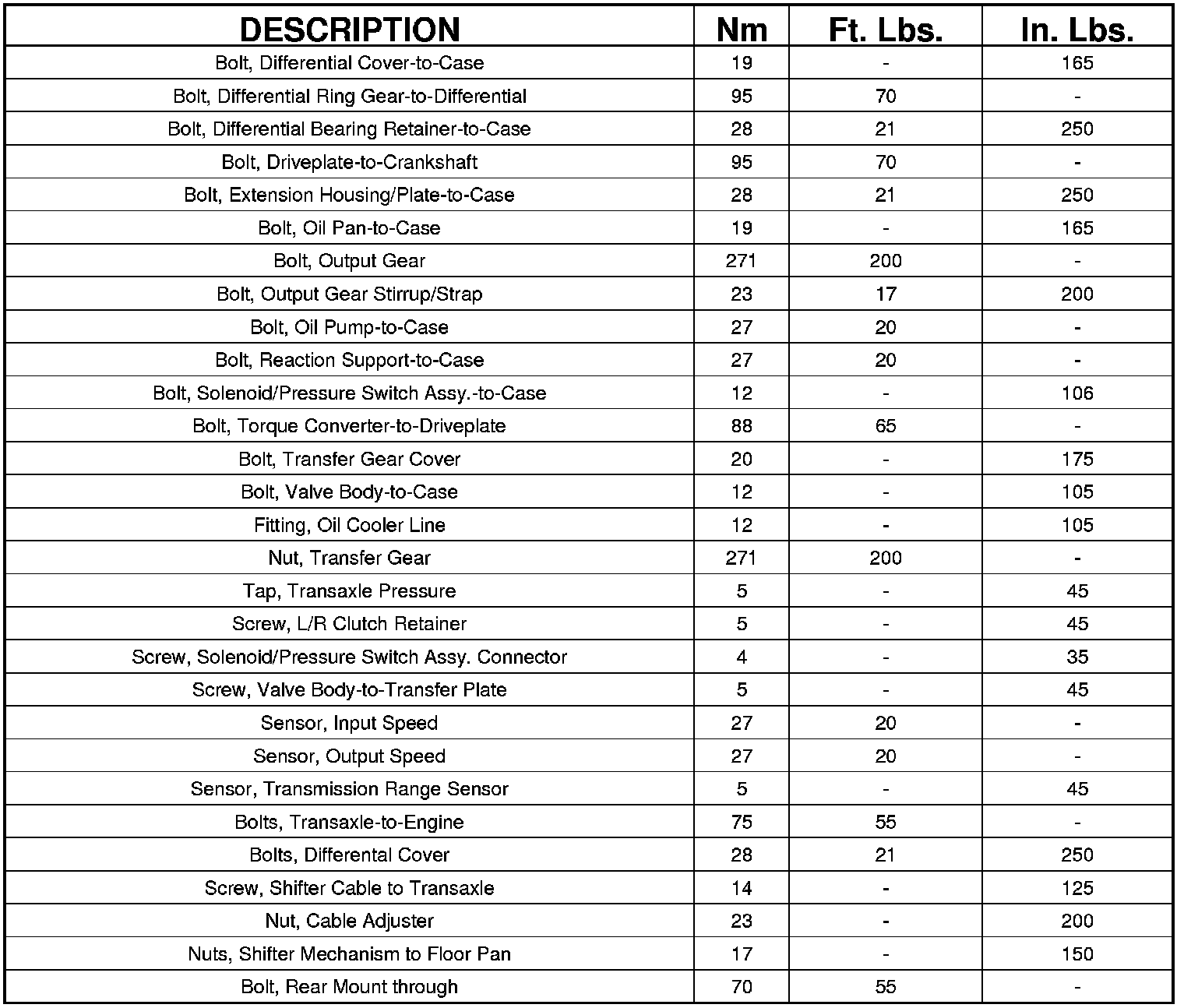

TORQUE SPECIFICATIONS
