Brake Rotor Disc

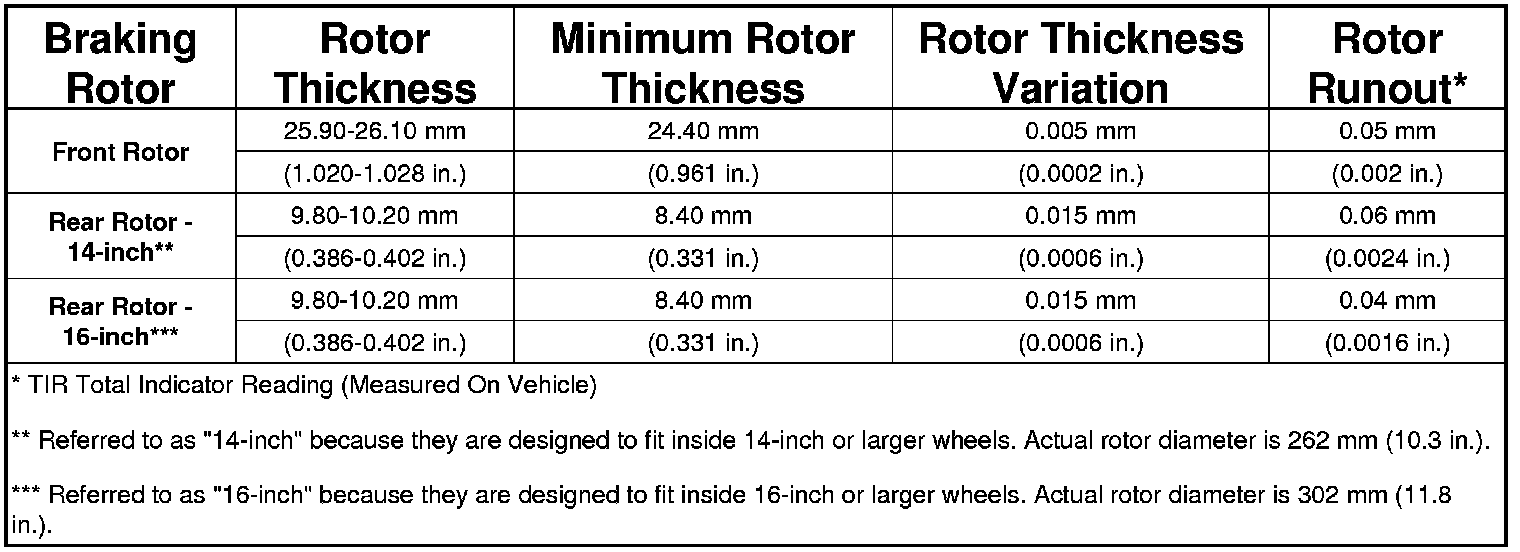

Brake Rotor/Disc

NOTE: When refacing a rotor, the required TIR (Total Indicator Reading) and thickness variation limits MUST BE MAINTAINED.
