OUTLET, Power: Installation: Installation

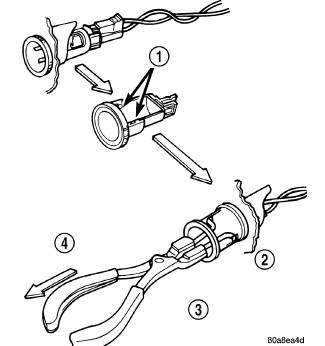

Fig 1: Remove/Install Power Outlet

Courtesy of CHRYSLER LLC

This procedure applies to the Front Console and Rear Cargo Area  mounted outlets on this vehicle. If the instrument panel mounted cigar lighter/power outlet is defective, the entire accessory switch bezel must be replaced.

1. Position mount ring to the instrument panel and feed the wires through ring. Index the cap and the mount ring with the index tab at 9 o'clock to the key in the instrument panel. Install the ring.
2. Connect wires to base. Orient base alignment rib at 11 o'clock to mate the groove in mount ring at the same location
3. Push base into the bezel till it locks.
4. Install cigar lighter cap.
5. Connect the battery negative cable.
