PLUG, Glow: Installation: Installation

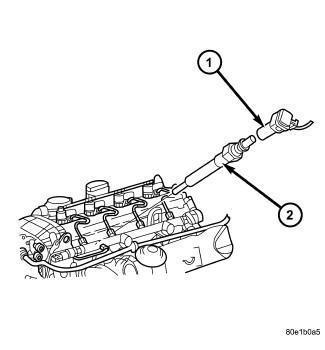

Fig 1: Glow Plug Location - Typical
GC0114334Courtesy of CHRYSLER LLC
1 - GLOW PLUG ELECTRICAL CONNECTOR
2 - GLOW PLUG
  1. Clean glow plug bay and install glow plug (2) . Tighten glow plugs to 12 N.m (106 lbs. in.).
  2. Connect glow plug electrical connector (1) .

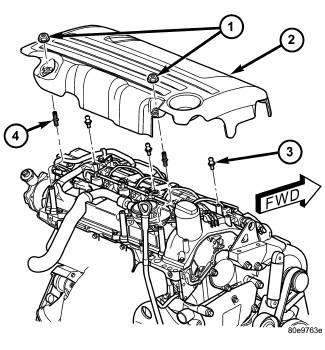

    Fig 2: Engine Cover Mounts
    GC0114335Courtesy of CHRYSLER LLC
    1 - ENGINE COVER RETAINING NUTS
    2 - ENGINE COVER
    3 - ENGINE COVER MOUNTS
    4 - ENGINE COVER MOUNTING STUDS
  3. Install engine cover (2). Refer to Engine - Installation .

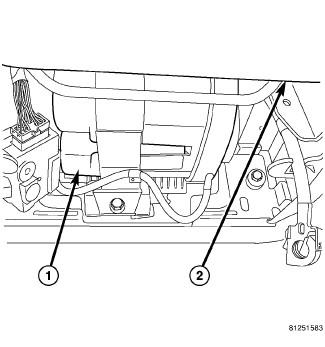

    Fig 3: Battery Location
    GC0114336Courtesy of CHRYSLER LLC
    1 - BATTERY
    2 - PASSENGER SEAT
  4. Connect negative battery (1) cable.
