System Specifications






SPECIFICATIONS

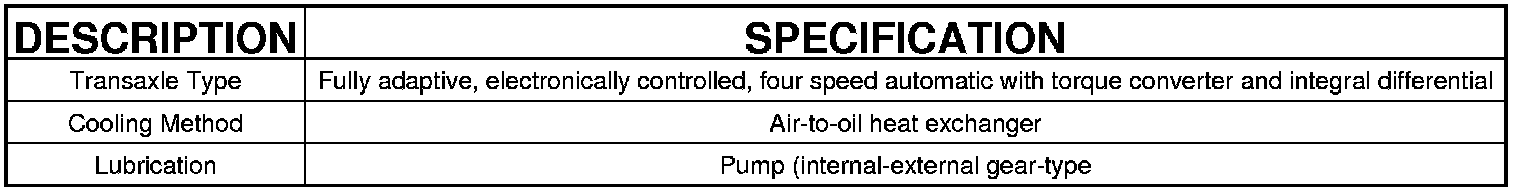

GENERAL SPECIFICATIONS

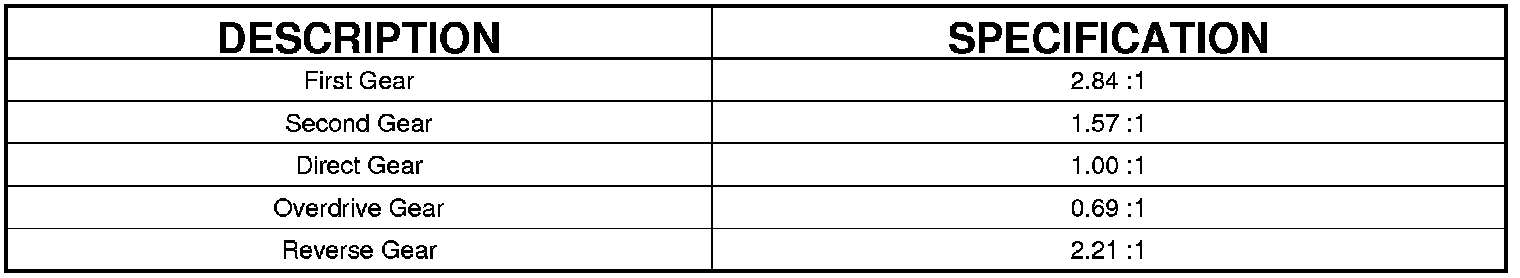

GEAR RATIOS

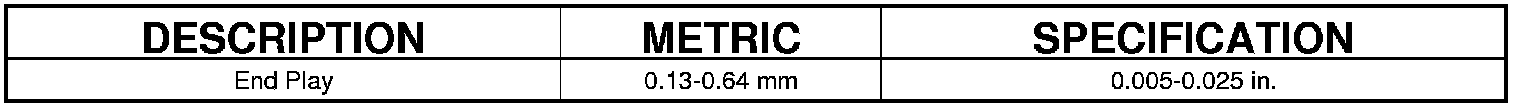

BEARING SETTINGS (END PLAY AND TURNING TORQUE)

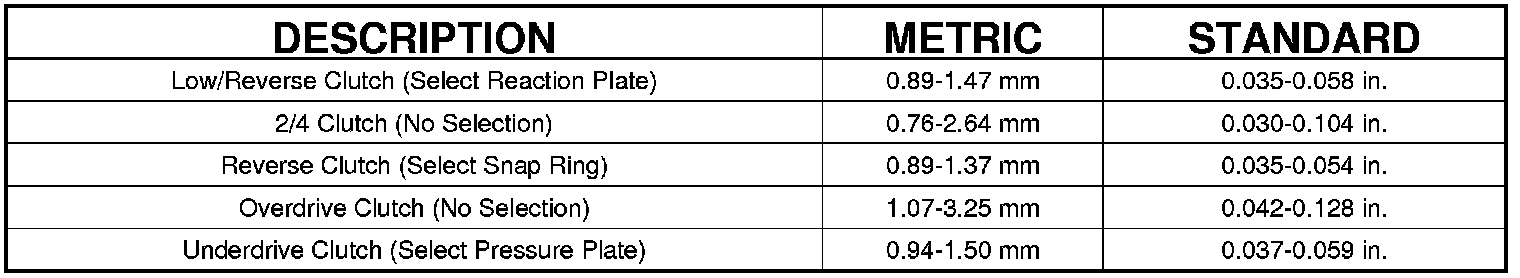

CLUTCH CLEARANCES






GEAR TRAIN MEASUREMENTS

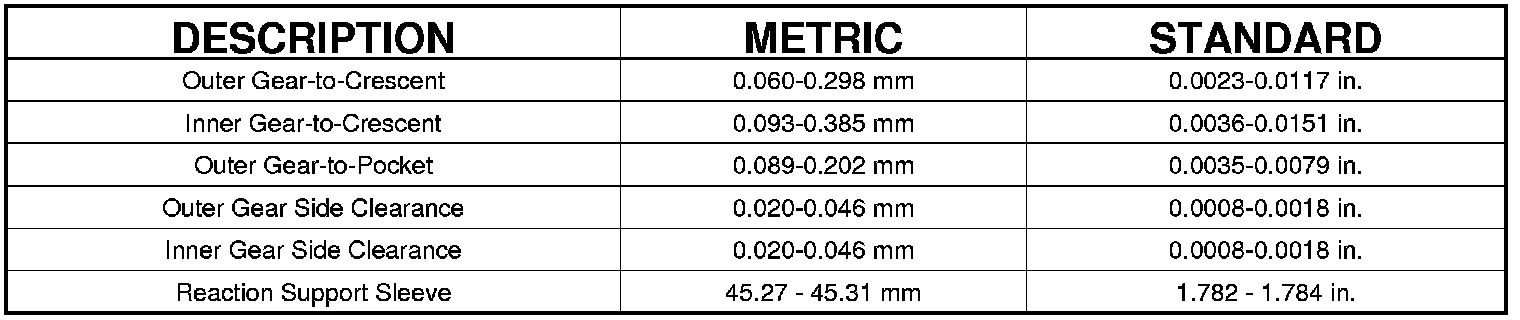

OIL PUMP CLEARANCES






INPUT SHAFT

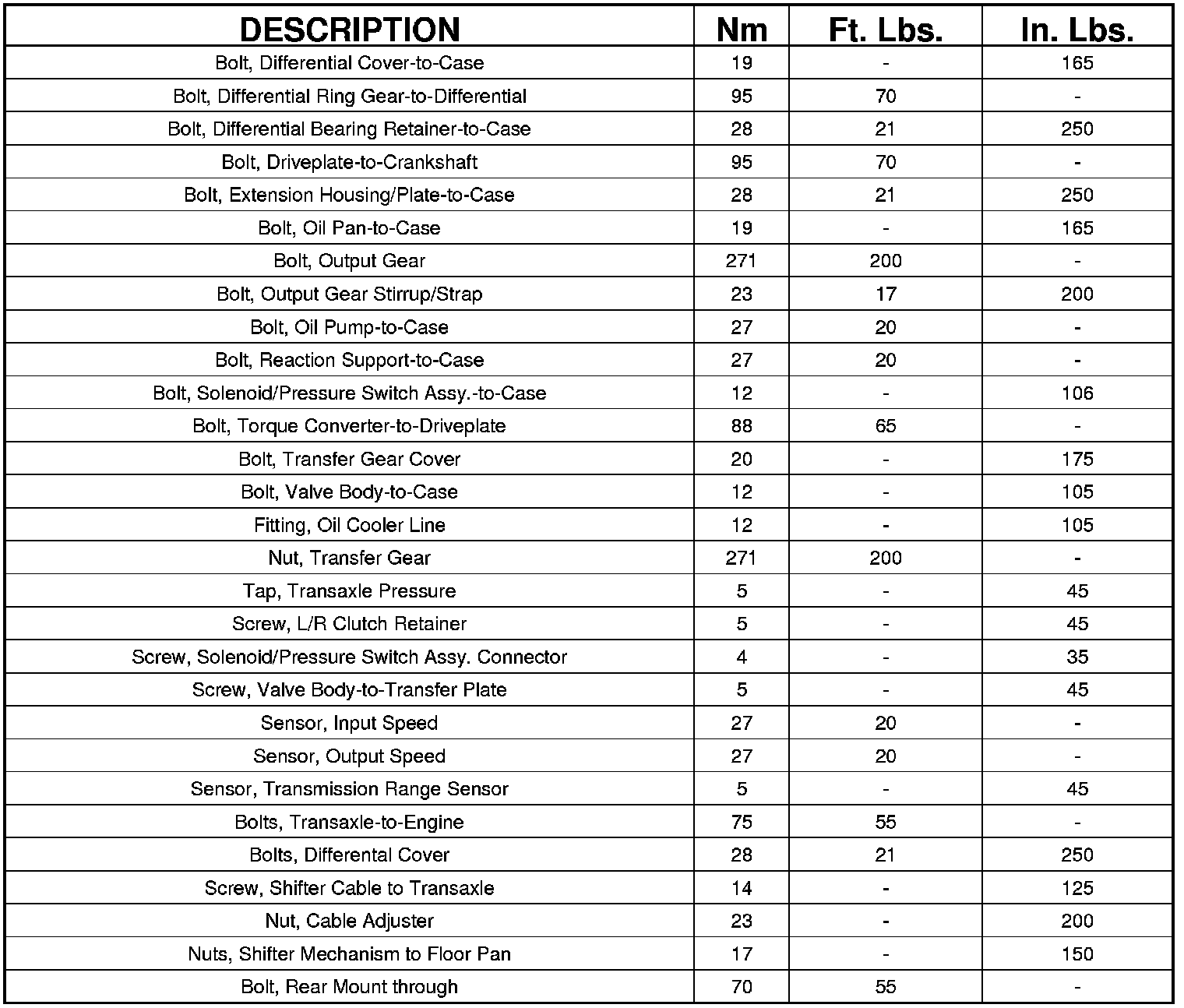

TORQUE SPECIFICATIONS
