Engine Coolant Temperature Sensor - Removal

3.5L










1. Disconnect negative battery cable.
2. Partially drain cooling system Service and Repair.
3. With the engine cold, disconnect coolant sensor electrical connector.

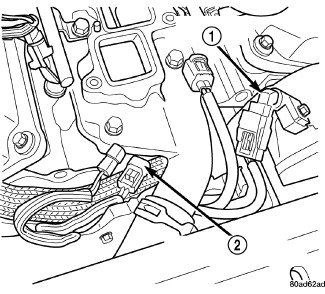

4. Remove sensor (2).
