Ignition Capacitor - Removal

3.5L

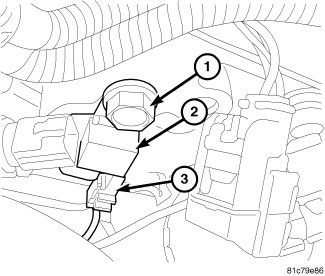

The ignition capacitor is located on the drivers side of the engine.

1. Disconnect and isolate negative battery cable at battery.
2. Remove electrical connector (3).
3. Remove mounting bolt (1) and ignition capacitor (2).
