Intake Manifold
INTAKE MANIFOLDIntake Manifold - Upper 12 Nm (105 in.lbs)

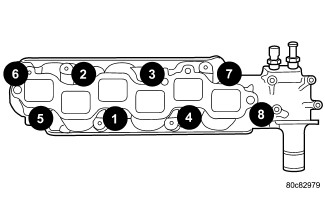

Tighten bolts gradually starting in the center working outward
Intake Manifold - Lower 28 Nm (250 in.lbs)
Intake Manifold - Upper 12 Nm (105 in.lbs)
Tighten bolts gradually starting in the center working outward
Intake Manifold - Lower 28 Nm (250 in.lbs)
