Rear

2.0, 2.4L REAR






CAUTION: Install camshaft position (CMP) sensor utilizing twisting motion. Make sure CMP sensor is fully seated. Do not drive CMP sensor into the bore with mounting screw. This may cause CMP sensor to be incorrectly seated causing a faulty signal or no signal at all.

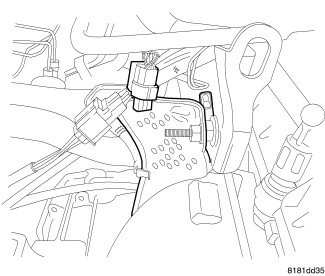

1. Lubricate sensor O-ring.
2. Install CMP sensor and mounting bolt and tighten to 9 Nm (79.5 in. lbs.).





3. Connect electrical connector to camshaft position sensor.

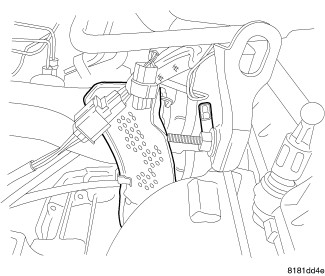

4. Install heat shield onto mounting stud.
5. Install heat shield retaining nut and tighten.





6. Connect the electrical connector.
7. Connect negative battery cable.
