Valve, One Way Check: Description: Description

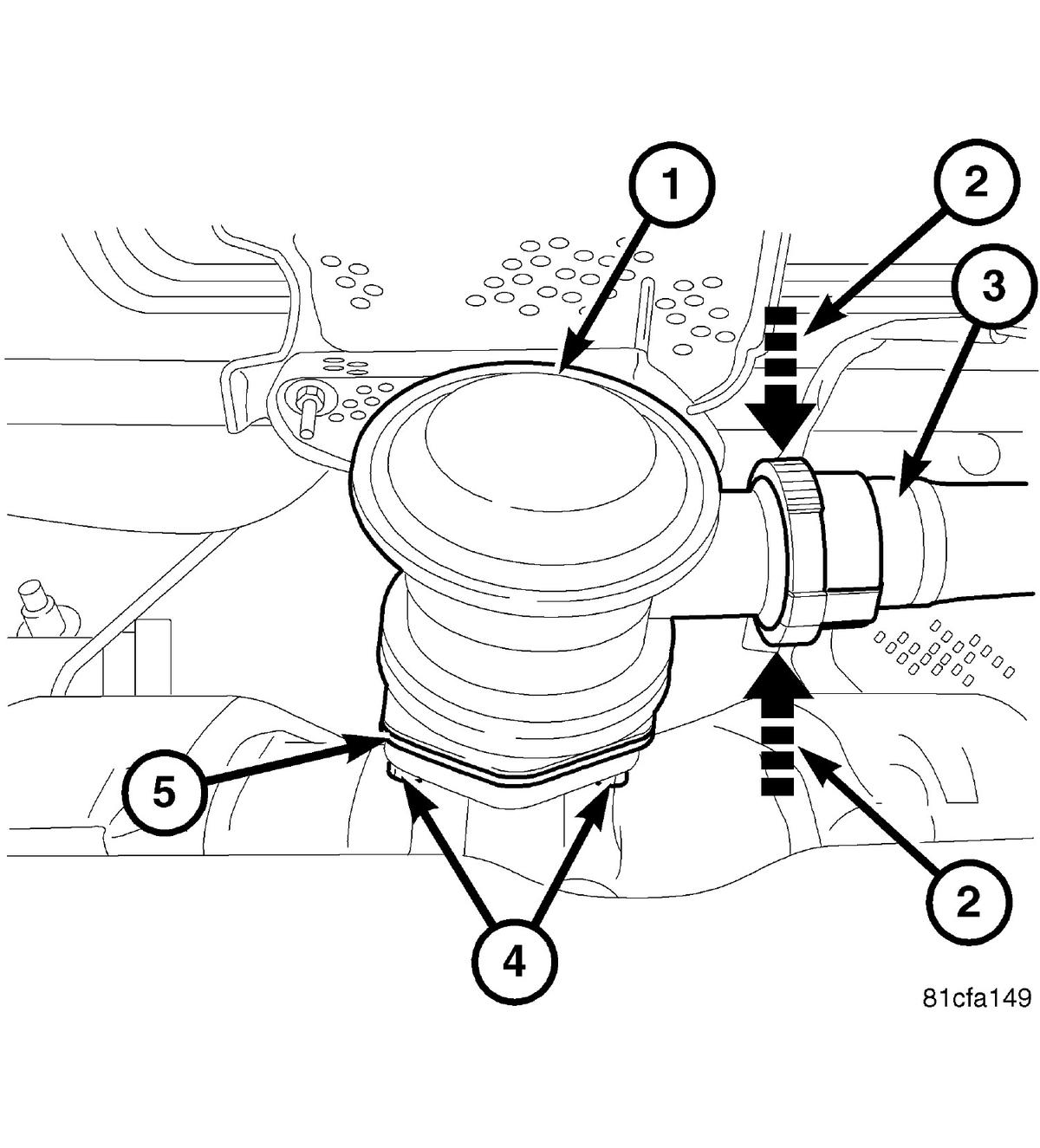

Fig 1: Air Injection Check Valve

Courtesy of CHRYSLER LLC

The one way check valve (1) is located on the exhaust side of the engine and is mounted to a flanged pipe that is part of the exhaust manifold on partial zero emission vehicles (PZEV).
