Oil Pressure Sensor - Removal

REMOVAL - OIL PRESSURE SENSOR

1. Release fuel system pressure Service and Repair.
2. Disconnect and isolate the negative battery cable.
3. Remove the air inlet hose, upper intake manifold and lower intake manifold with the fuel injectors and fuel rail (2) Intake Manifold - Removal.




4. Disconnect the oil pressure sensor electrical connector (4).

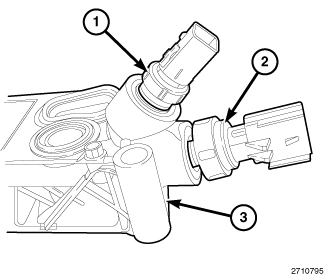

5. Remove the oil pressure sensor (2) from the oil filter housing (3).
