Transmission Range Sensor - Removal

REMOVAL





1. Remove the valve body Valve Body - Removal
2. Remove the park rod assembly (2) from the TRS/rooster comb (1).





3. Remove the set screw (1) with a allen wrench (3) at manual lever (2).





4. Remove the roll pin (3) at the TRS/rooster comb (1) using a pin punch (2).





5. Remove the manual lever (2) from case and inspect the bushing (3).





6. Remove the TRS/rooster (1, 2) comb from the case.

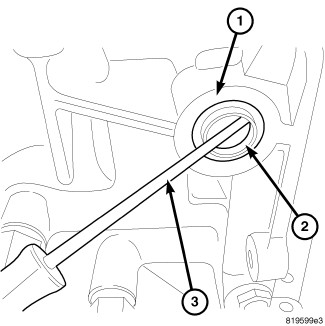

7. Remove the manual lever seal (2).
