Intake Manifold

UPPER INTAKE MANIFOLD

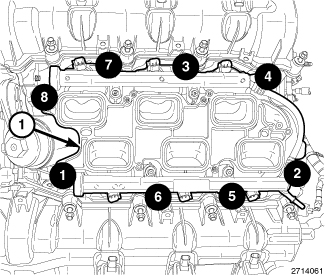

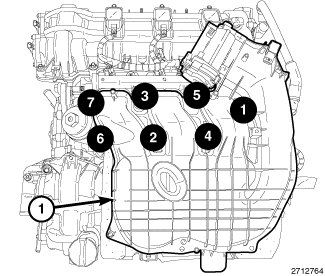

The bolts must tightened in the sequence shown 7 Nm (62 in. lbs.)







Install the seven upper intake manifold attaching bolts.
Tighten the bolts 8 Nm (71 in. lbs.).

Install two nuts to the upper intake manifold support bracket
Tighten the nuts 10 Nm (89 in. lbs.)
Tighten the studbolt 20 Nm (177 in. lbs.)

Install two upper intake manifold support brackets with two studbolts and two nuts.
Tighten the studbolts 20 Nm (177 in. lbs.)
Tighten the nuts 10 Nm (89 in. lbs.)






LOWER INTAKE MANIFOLD

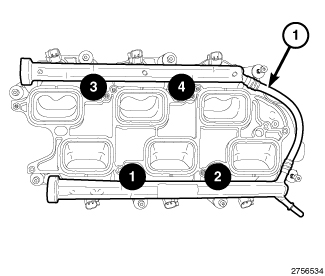

Install the fuel injectors and the fuel rail to the lower intake manifold.
Tighten the four bolts 7 Nm (62 in. lbs.)






Install the manifold attaching bolts 8 Nm (71 in. lbs.).
