C147A-Transfer Case Temperature Sensor High: Notes

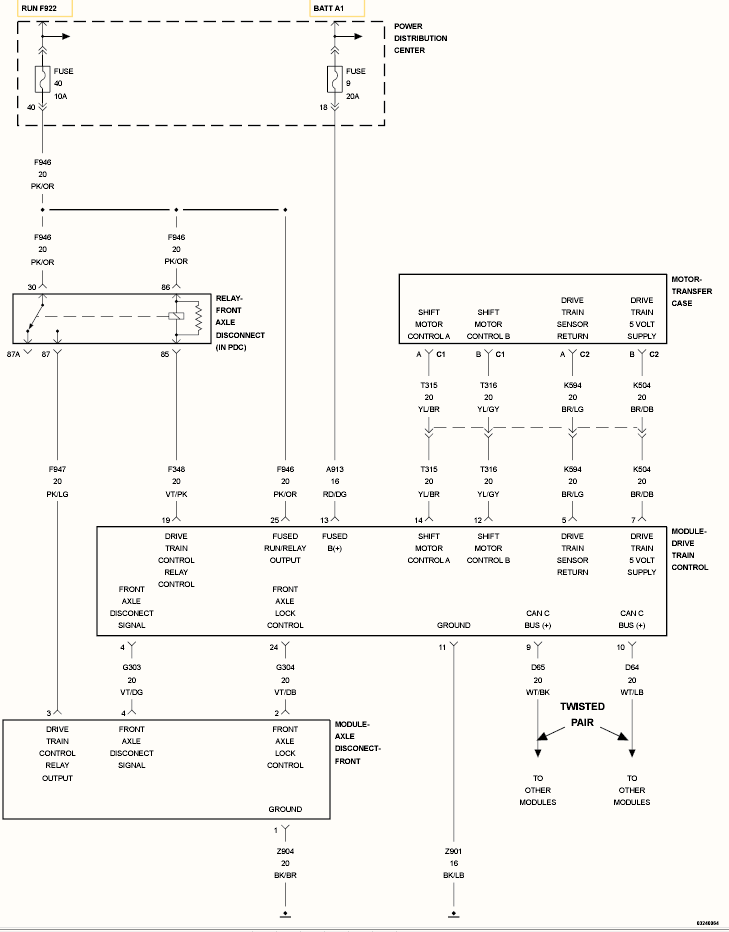

Fig 1: Drive Train Control Module Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
