Coolant Level Check

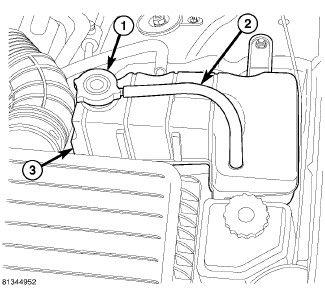

Fig 1: Coolant Recovery Container

Courtesy of CHRYSLER LLC

1 - COOLANT RECOVER CONTAINER PRESSURE CAP

2 - COOLANT RECOVERY CONTAINER

3 - ADD/FULL MARKS

NOTE:

Do not remove radiator cap for routine coolant level inspections. The coolant level can be checked at coolant recovery bottle (2).

The coolant reserve/overflow system provides a quick method for determining coolant level. With engine not running, the coolant level should be between MIN and MAX marks (3). If the coolant level is at or below the MIN mark, fill the recovery bottle with a 50/50 mixture of antifreeze and water ONE QUART AT A TIME. Repeat this procedure until the coolant level is at the FULL mark.
