Radio Frequency Module (RF Hub) - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the rear shelf cover Trunk Rear Trim Panel - Removal.

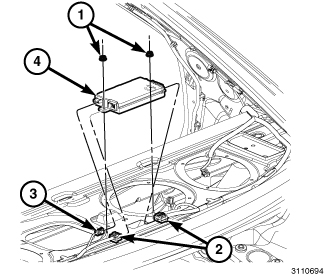

3. Remove the RF Hub retainers (1).
4. Disconnect the electrical connectors (2).
5. If equipped, disconnect the remote start antenna (3).
6. Remove the RF Hub (4) from the vehicle.
