Blower Motor Power Module - Installation

INSTALLATION

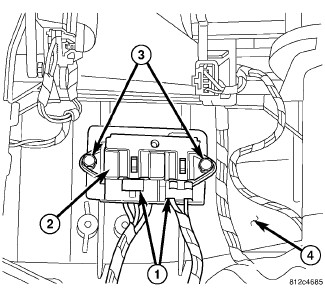

1. Position the blower motor power module (2) into the HVAC housing (4).
2. Install the two screws (3) that secure the blower motor power module to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Connect the two wire harness connectors (1) to the blower motor power module.
4. Install the glove box into the instrument panel Instrument Panel Glove Box Door - Installation
5. Reconnect the negative battery cable.
