Engine Coolant Temperature Sensor - Installation

5.7L / 6.4L ENGINE

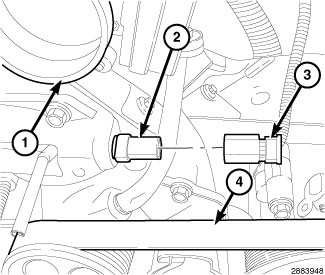

1. Apply MOPAR(R) thread sealant with PFTE to the sensor threads.
2. Install the coolant temperature sensor (2) into water pump housing.
3. Tighten the coolant temperature sensor to 11 Nm (8 ft. lbs.).
4. Connect the coolant temperature sensor electrical connector (3).
5. Install air intake system Air Cleaner Body - Installation.
6. Replace any lost engine coolant Service and Repair.
