Drivetrain Control Module - Removal






REMOVAL

1. To gain access to the Drive Train Contol Module (DTCM), remove the driver side foot rest. Front Floor Foot Rest - Removal.

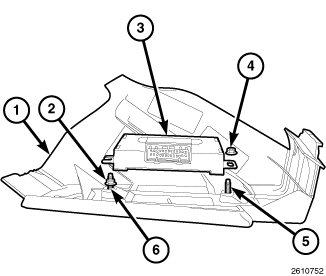

2. Loosen the mounting nut (2) from mounting stud (6), remove mounting nut (4) from mounting stud (5).
3. Slide DTCM from mounting stud (6) and remove from drivers side foot rest (3).
