Infrared Temperature Sensor - Description






DESCRIPTION






NOTE: Sedan model shown. Convertible model similar.

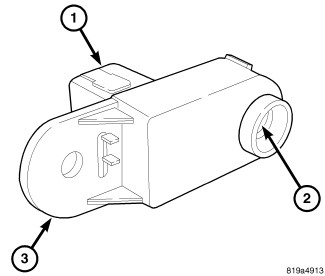

The infrared temperature sensor consists of an infrared transducer concealed behind a clear lens (2) located in a molded plastic housing with an integral wire connector receptacle (1) and mounting tab (3).
