Sun Sensor - Installation

INSTALLATION

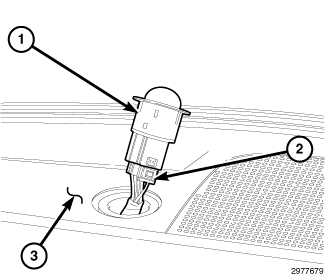

1. Position the sun sensor (1) near the instrument panel (3).
2. Connect the wiring harness connector (2) to the sun sensor.
3. Align the tab on the sun sensor with the slot in the opening of the instrument panel and gently push the sensor into the instrument panel. Make sure the sensor is fully engaged and lies flat in the instrument panel.
4. Reconnect the negative battery cable.
