Engine Coolant Temperature Sensor - Installation

2.4L

COOLANT ADAPTER MOUNTED

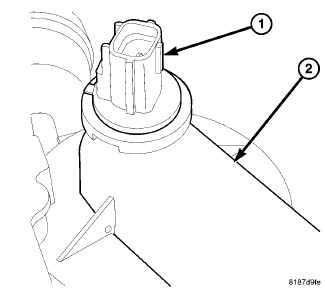

1. Install ECT Sensor (1). Make sure coolant sensor is locked in place
2. Reconnect ECT Sensor electrical connector.
3. Fill cooling system Service and Repair.
4. Connect negative battery cable.
