Engine Coolant Temperature Sensor - Removal

2.4L

COOLANT ADAPTER MOUNTED










1. Disconnect negative battery cable.

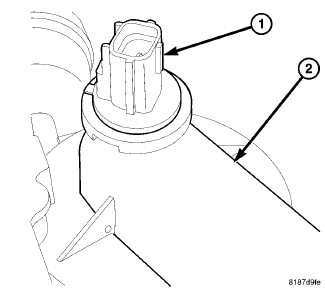

2. Partially drain cooling system below level of ECT Sensor (1).
3. Disconnect ECT Sensor electrical connector.
4. Remove ECT Sensor (1) by pressing the locking tab and twisting the sensor counter clockwise.
