Knock Sensor - Removal

2.4L

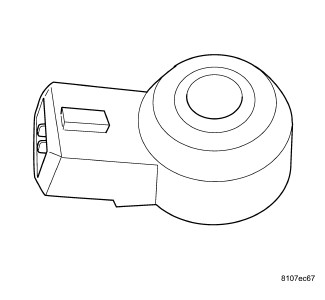

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

1. Disconnect and isolate the negative battery cable.





2. Remove the bolt holding the knock sensor.
3. Remove the sensor with the electrical connector attached.
4. Disconnect the electrical connector from the knock sensor.





5. Remove the knock sensor.
