Installation

2.4L

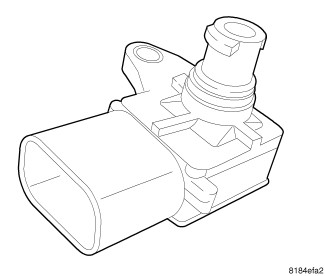

1. Install the manifold absolute pressure (MAP) sensor to intake manifold.





2. Tighten screw to 4.5 Nm (40 in. lbs.).

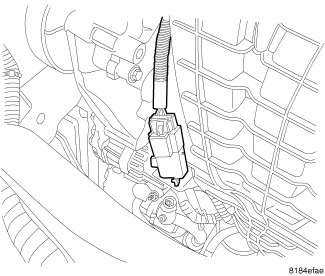

3. Connect the electrical connector to the sensor.
4. Install the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
