Wheel Stud / Lug Nut

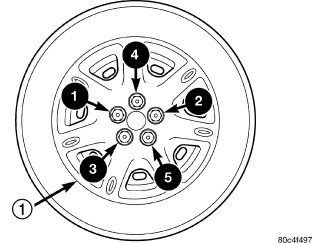

ALUMINUM WHEEL






Progressively tighten all wheel mounting nuts 135 Nm (100 ft. lbs.).

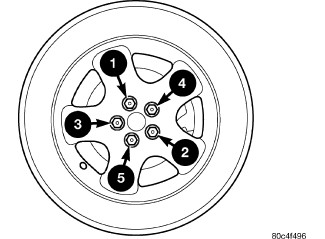

STEEL WHEEL










Progressively tighten all wheel mounting (lug) nuts 135 Nm (100 ft. lbs.).
