Ignition Switch - Installation

INSTALLATION

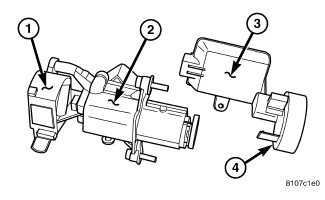

1. If removed, install the ignition switch (1) to the ignition key cylinder (2).
2. If removed, install the Sentry Key Immobilizer (SKREEM) module (3) to the ignition key cylinder (2).
3. To install the ignition switch, follow the procedure to install the SKREEM module Sentry Key Immobilizer Module (SKREEM) - Installation.
4. Connect the negative battery cable.
