Water Pump

WATER PUMP

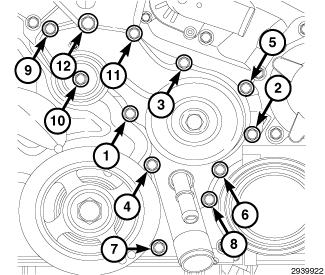

Tighten the M6 water pump mounting bolts in sequential order 12 Nm (106 in. lbs.)
Tighten the M8 mounting bolt 25 Nm (18 ft. lbs.)
Tighten the M10 mounting bolt 55 Nm (41 ft. lbs.)
