A/C System

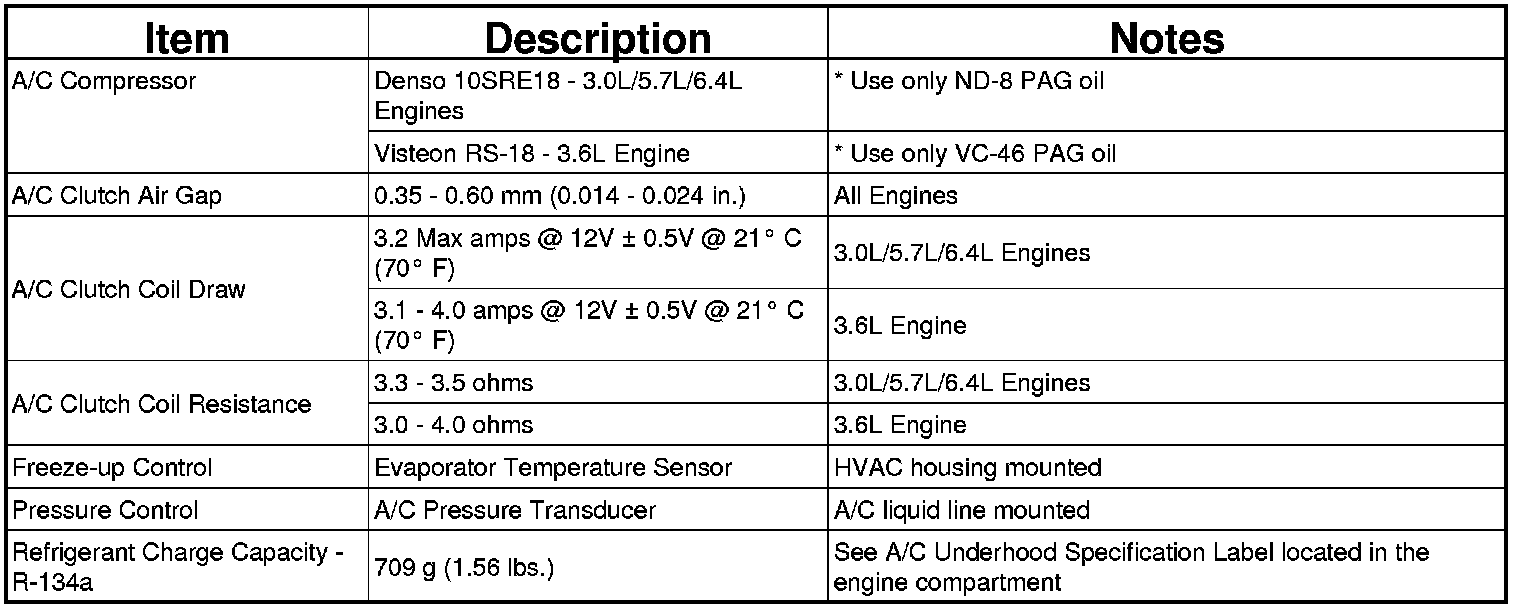

A/C SYSTEM






* Always use the type of PAG oil listed for the model being serviced. See A/C Underhood Specification Label located in the engine compartment. Do not mix different types of PAG oils Refrigerant Oil Level.
