Ignition Capacitor - Installation

2.4L

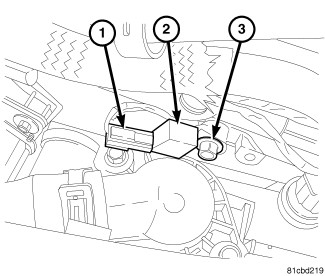

1. Install the ignition coil capacitor (2) with bolt (3) tightened to 10 Nm (88.5 ft. lbs.).

2. Connect the electrical connector (1).

3. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
