Power Top Control Module - Removal

REMOVAL

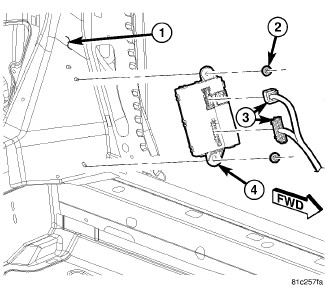

1. Disconnect and isolate the battery negative cable.

2. Remove the left lower quarter trim panel, Quarter Trim Panel - Removal.

3. Disconnect the Power Top Control Module (PTCM) electrical connectors (3).

4. Remove the two PTCM retaining nuts (2).

5. Remove the PTCM (4) from the vehicle.
