Wheel Alignment

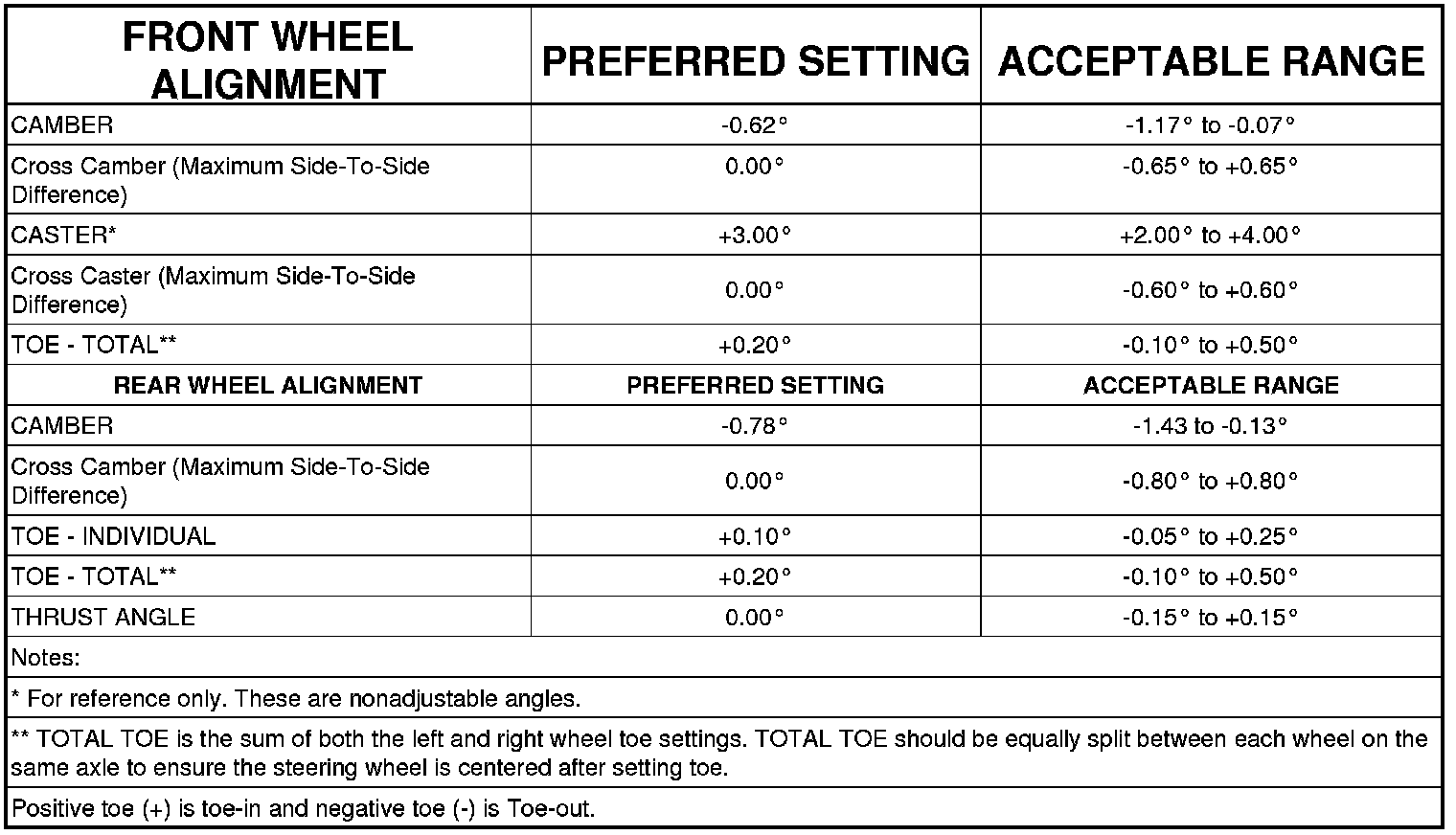

SPECIFICATIONS

NOTE:
All specifications are given in degrees.

NOTE:
All wheel alignments are to be set with the vehicle at curb height. Wheel Alignment Procedures
