Sensor, Mass Air Flow (MAF): Removal: Removal

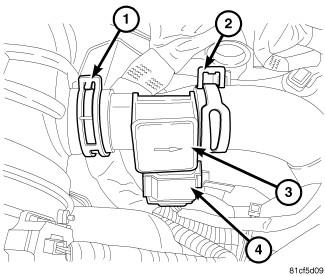

Fig 1: Mass Air Flow Sensor
GC0123416Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the mass air flow (MAF) sensor electrical connector (4).
  3. Disengage the constant tension clamps (1 and 2) securing the MAF sensor (3).
  4. Remove the MAF sensor (3) from the hoses.
