Firing Order: 3.6L

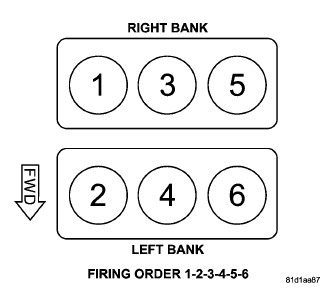

Fig 1: Transverse 6 Cyl. Firing Order (3.6L)
Courtesy of CHRYSLER GROUP, LLC
The firing order is 1-2-3-4-5-6.
Courtesy of CHRYSLER GROUP, LLC
