Buckle, Seat Belt: Installation: Front

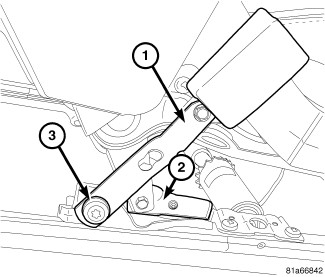

Fig 1: Removing/Installing Driver Front Seat Belt Buckle
GC0122052Courtesy of CHRYSLER GROUP, LLC
  1. Position the buckle (1) on the seat cushion frame (2).
  2. Install the retaining bolt and tighten to 100 N.m (74 ft. lbs.).
  3. Install the cushion side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, INSTALLATION or SIDE SHIELDS, SEAT CUSHION, FRONT, INSTALLATION .
  4. Install the front seat. Refer to SEAT, INSTALLATION or SEAT, FRONT, INSTALLATION .
