Module, Occupant Restraint Controller: Removal: Module

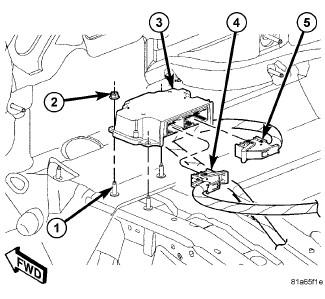

Fig 1: Removing/Installing ORC
GC0122055Courtesy of CHRYSLER GROUP, LLC
  1. Open hood.
  2. Disconnect and isolate the negative cable from the battery. Wait two minutes for the system capacitor to discharge before further service.
    WARNING:

    Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

  3. Remove the center console. Refer to HOUSING, SHIFTER, REMOVAL .
  4. Remove the ORC mounting nuts (2).
  5. Disconnect the two ORC connectors (4 and 5).
  6. Remove ORC (3) from vehicle.
